Detail produk:
|
| Tegangan: | 220/380V | Kondisi: | Baru |
|---|---|---|---|
| Jaminan: | 12 bulan | Jenis: | Mesin press |
| Penggunaan: | tekan minyak | Nilai otomatis: | Otomatis |
| Sertifikasi: | CE,SGS,CE SGS ISO,EMC,CE/SGS | Fitur: | Pengoperasian yang mudah, tipe otomatis, Kualitas Tinggi, Kustom yang Dipersonalisasi, Hemat biaya t |

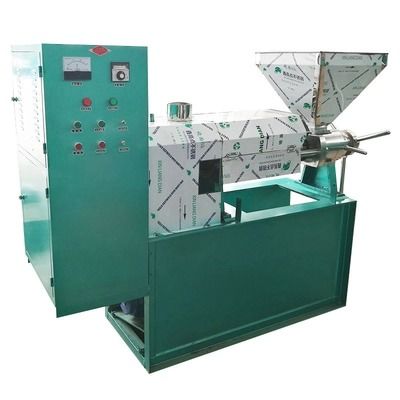

Automatic Oil Press Machine Industrial Oil pressing machine Nuts Seeds Oil Presser Pressing Machine
Product Description
This coconut oil press machine can be widely applicable to various types of plants ,such as rapeseed ,peanut ,soybean, palm kernel, sesame, sunflower, teaseed, cottonseed, tung seed, copra.etc.
With advantages of easy operation,energy saving,low noise,high rate of oil,adaptability and continuous operations, these machines are widely used in the market.
| Model | 6YL-60 | 6YL-70 | 6YL-80 | 6YL-100 | 6YL-125 |
| Power | 2.2 kw | 3 kw | 5.5 kw | 7.5 kw | 15 kw |
| Capacity | 50-60kg/h | 70-80kg/h | 80-130kg/h | 140-280kg/h | 300-400 kg/h |
| Weight | 220kg | 380kg | 780kg | 1100kg | 1280kg |
| Dimension(mm) | 1200*780*1100 | 1400*860*1260 | 1700*1200*1500 | 1800*1300*1680 | 2100*1430*1700 |
Machine Features of coconut oil press machine
1.High oil yield(the rate of the outlet oil >93%),residual oil of the cake is less,crude oil is clearer,less degums.
2.The oil press machine's material is better,the accessories are wear resistance and long service life after quenching conditioning treatment.
3.For the gear-box's gears,adopt the special helical&couping fear's design and low noise,long working life.
4.One Year Warranty,high quality
5.Raw Material:soybean,cottonseed,peanut,rapeseed,sunflower,teaseed,copra,tung seeds and palm kernel palm pulp,casterseed,jatropha seed ect.
Working Princciple and Structure
1.Working principle:This coconut oil press machine uses the poer of the space change for the material in the chamber and the driving force from the scre shaft as well as the resistance from the tooth curve in the pressing ring.The friction force from material pressing produces big pressing power,then oil-segregates from the material and discharges from the pressing bar gap and pressing ring groove.
2.Structure: This coconut oil press machine consists of five main parts,including gearbox,press case,hopper,pressing screw and main body.
1.We always use standard export wooden packing,carton box.
2.You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4.You will get full feedback when your machine is on the way.
